JK008 Homoporous Strong Acidic Styrene Series Cation Exchange Resin
This product is a type of homoporous strong acidic ion exchange resin which bases on the styrene-divinylbenzene copolymers of crosslinking structure with sulfonic group(-SO₃H).Due to adoption of national advanced secondary polymerization method,this product has more homogeneous aperture and physical structure which can offer the performances like good stain resistance,strong mechanical strength,fast exchange rate and others.
Series: Strong Acidic Series
This product mainly applies to fermented trade's drawing and except that salt;The hard water softens,gets rid of brine,pure water and high pure water preparation,etc..
Technical Standards:

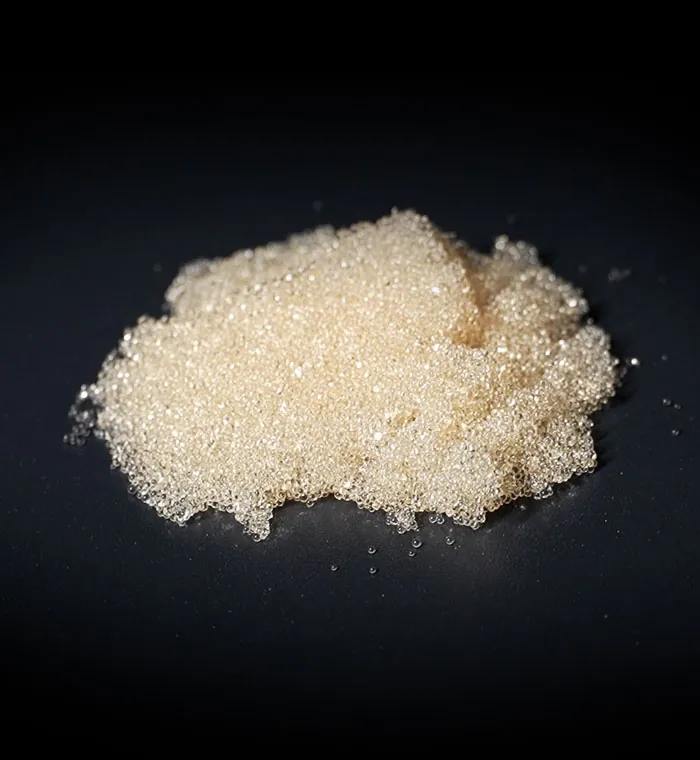

1、Appearance:Gold to chocolate brown spherical particle.
2、Ex works Type:Sodium Type
3、Main Performance Indexes:(According to GB13659-92,DL/T519-2004 and SH2605.01-2003 Standards)
Reference Indicators:
1、pH Range: 1-14
2、Max.Operating Temperature: Sodium Type≤120℃
3、Transformation Expansion Ratio: (Na⁺→H)≤5-10%
4、Height of Industrial Resin Bed: 1-3m
5、Concentration of Regenerated Liquid: NaOH:4%;HCl:4-5%;NaCl:8-10%
6、Dose of Regenerated Liquid: NaOH(4-5%)Volume:Resin Volume= 2-3:1 HCl(4-5%)Volume:Resin Volume = 2-3:1 NaCl(8-10%)Volume: Resin Volume = 2-3:1
7、Flow Rate of Regenerated Liquid: 5-8m/h
8、Regeneration Contact Duration: 30-60 Min
9、Flow Rate of Conventional Well-flushing: 10-20 m/h
10、Duration of Conventional Well-flushing: Approx.30 Min
11、Running Flow Rate: 10-40m/h
